Freesolveᵀᴹ

    Metallic Performance¹⁻³. Fully Resorbable*⁴

    Indicated for de novo coronary artery lesionsa

    Support
    Resorbable coronary scaffolds widen coronary artery stenoses and provide temporary vessel support. Thereby, scaffolds enable unobstructed blood flow in the coronary arteries with low rates of stent thrombosis (ST) and target lesion revascularization (TLR).

    Resorb
    By degrading after fulfilling their scaffolding function, they offer all options of future therapies.

    Category

    Vascular Intervention Coronary Resorbable Magnesium Scaffold

    Product Highlights

    Delivers like a DES5

    Optimal vessel support6,7

    Magnesium fully resorbed after 12 months8

    Excellent safety and efficacy2,3

    Delivers like a DES5

    Push5

    Better than contemporary DES

    Track5

    Better than contemporary DES

    Optimal vessel support6,7

    Predictable, homogenous resorption process⁶

    Equal resorption between struts6

    Uniform shape due to homogenous strut resorption6

    More than 3 months vessel support6,7

    Magnesium fully resorbed after 12 months8

    >99% of struts no longer visible at 12 months8

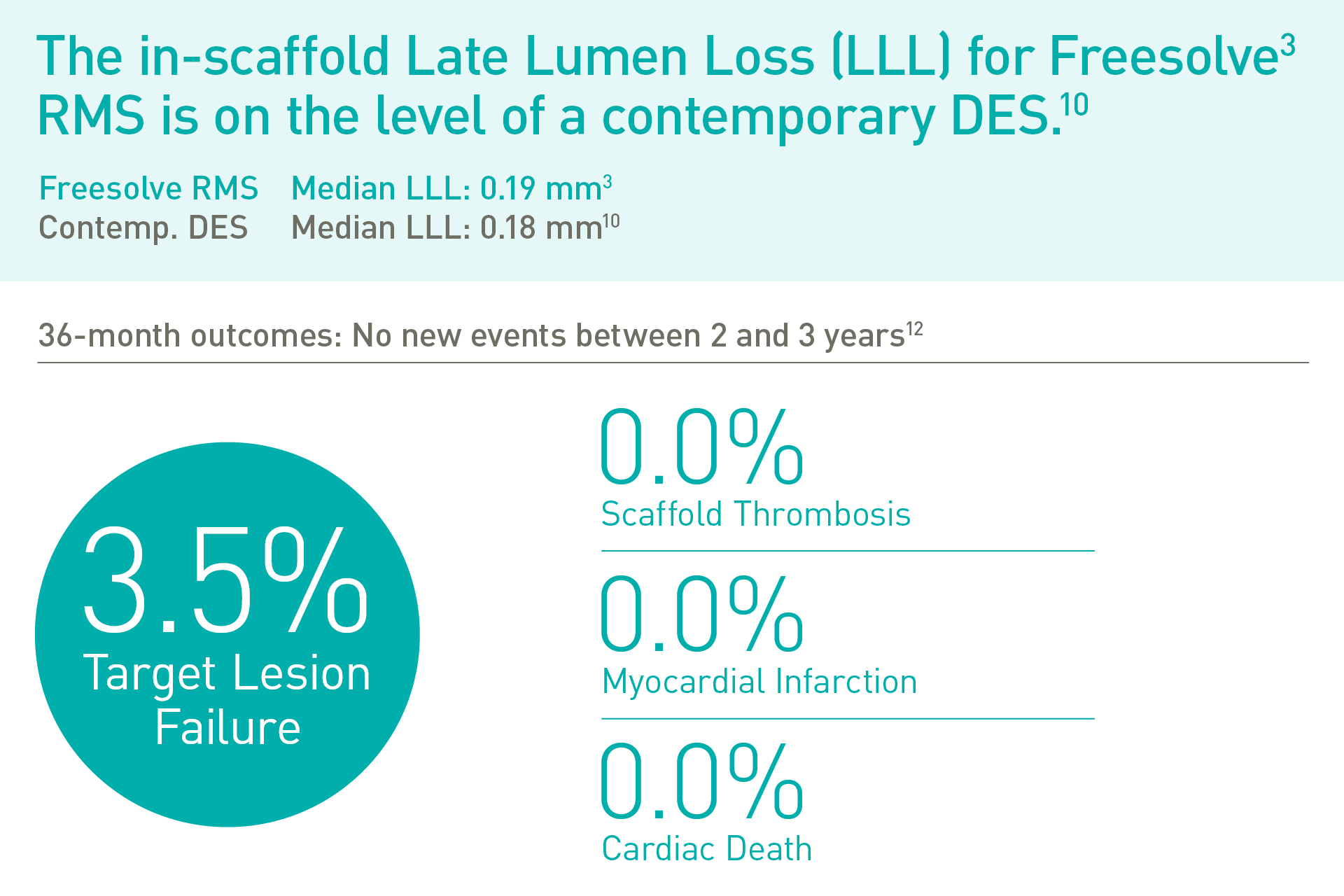

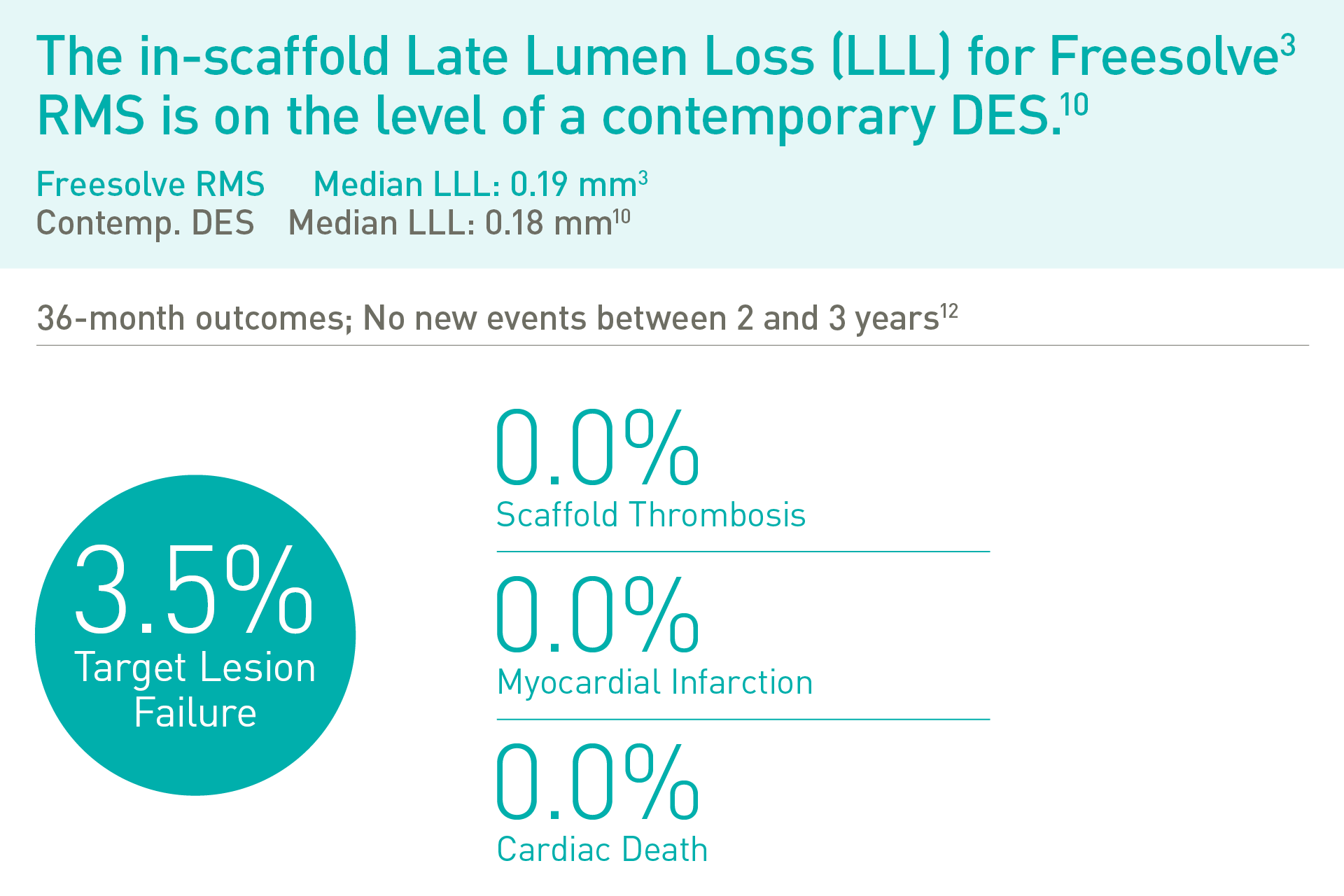

    Excellent saftey and efficacy2,3

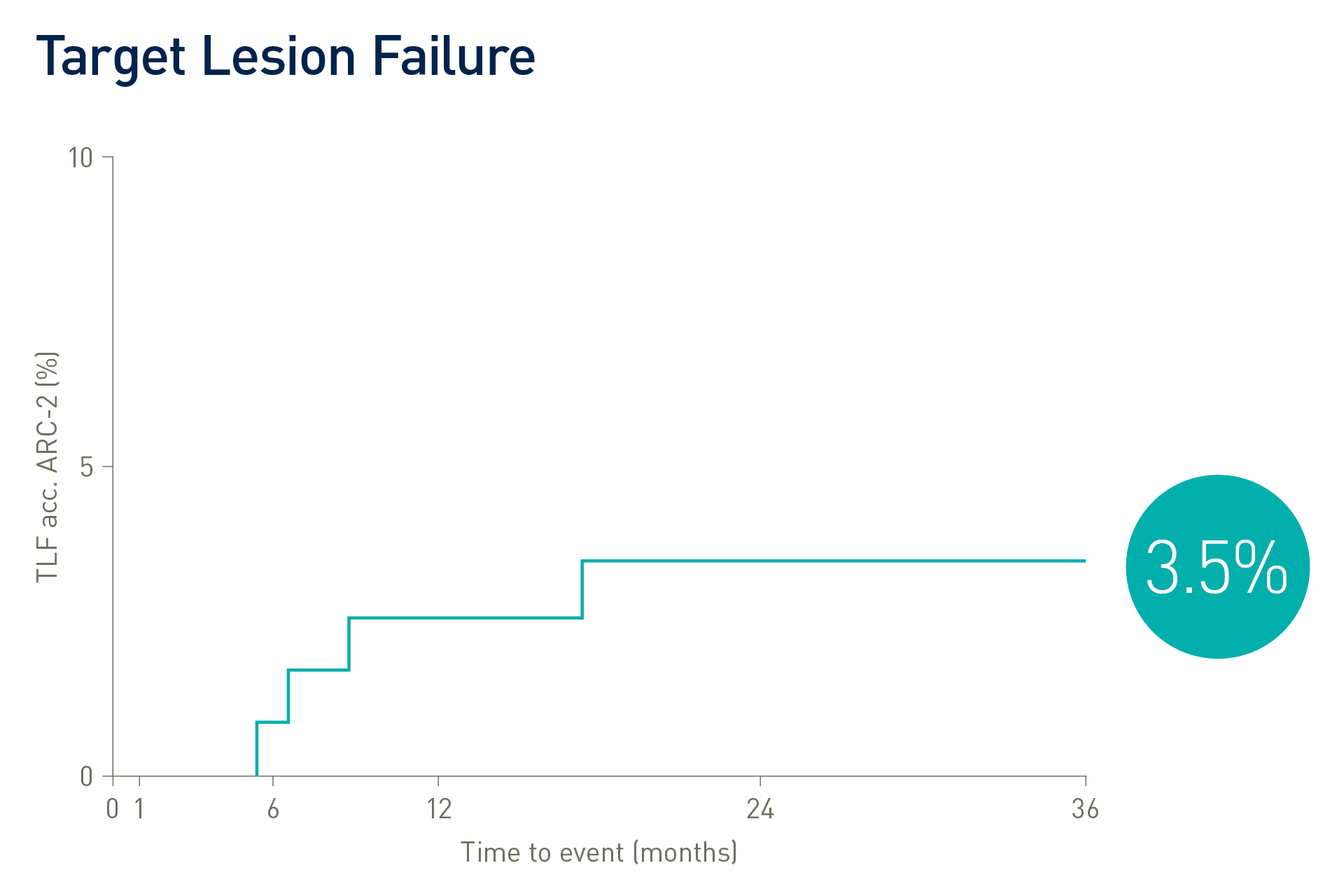

    BIOMAG-I First-In-Human (FIH) trial3

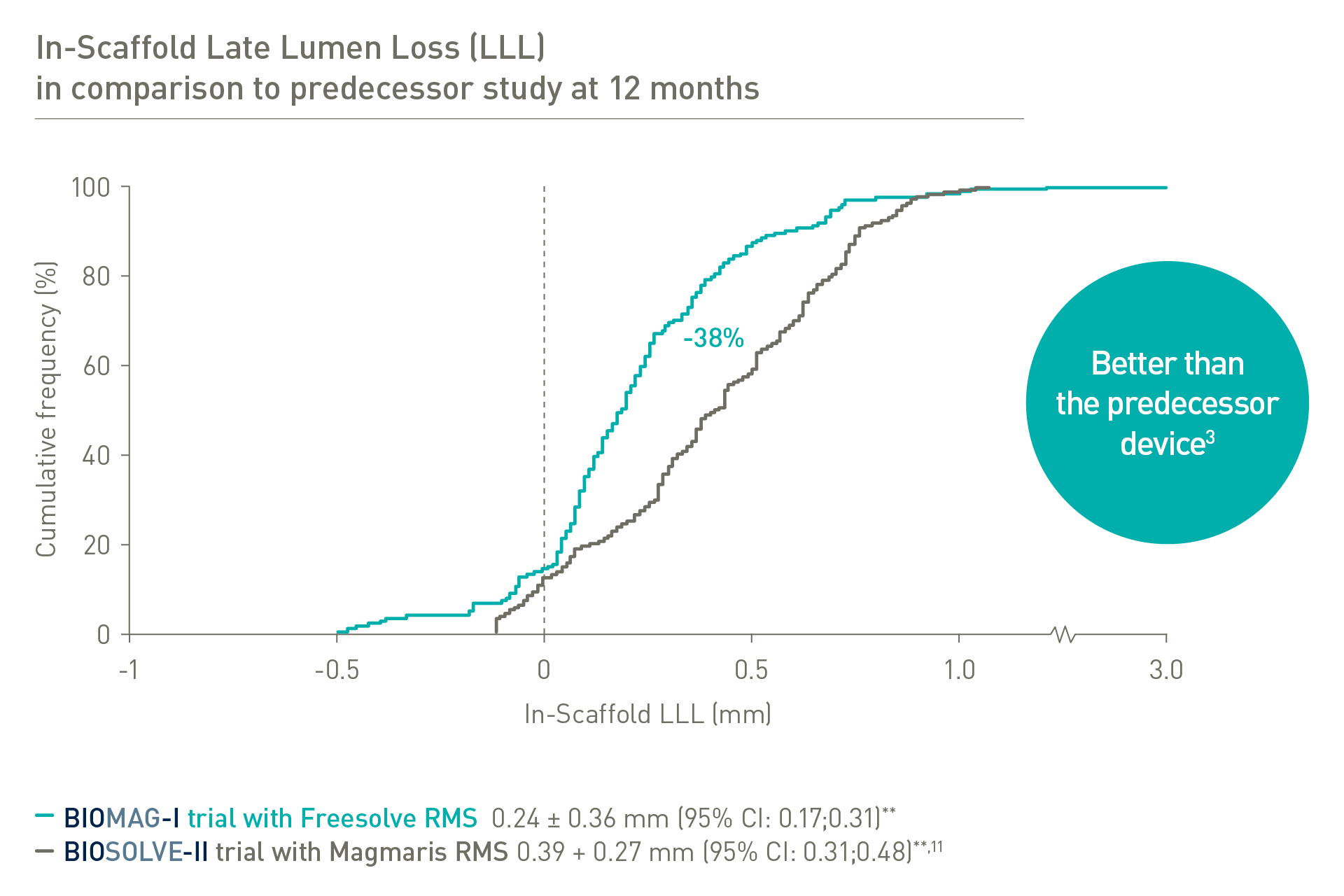

    Clinical Highlights

    Product Overview

    Freesolveᵀᴹ

    Technical Data

    Scaffold
    Scaffold material Proprietary BIOmag® Magnesium alloy
    Strut thickness ø 2.5 mm: 99 μm; ø 3.0/3.5 mm: 117 μm;
    ø 4.0 mm: 147 μm
    Maximum expandable diameter Nominal diameter + 0.6 mm
    Markers One oval Tantalum marker at each end
    Drug coating BIOlute® resorbable Poly-L-Lactide (PLLA) eluting
    a limus drug
    Delivery system
    Catheter type Rapid exchange
    Catheter length 140 cm
    Recommended guide catheter 6F
    Crossing profile ø 2.5 mm ≤ 1.3 mm; ø 3.0-4.0 mm ≤ 1.4 mm
    Guide wire diameter 0.014”
    Nominal pressure (NP) 10 atm
    Rate burst pressure (RBP) 16 atm

    Vessel Sizing

    Scaffold
    ø (mm) (SD)    		 Recommended
    ø (mm) (RVD)
    2.50 2.50 - 2.70
    3.00 2.70 - 3.20
    3.50 3.20 - 3.70
    4.00 3.70 - 4.20

    Compliance Chart

        Balloon diameter (mm)
        ø 2.50 ø 3.00 ø 3.50
    Nominal Pressure
    (NP)    		 atm**
    ø (mm)    		 10
    2.52    		 10
    3.04    		 10
    3.54
    Rated Burst
    Pressure (RBP)    		 atm**
    ø (mm)    		 16
    2.72    		 16
    3.29    		 16
    3.79
    *1 atm = 1.013 bar

    Ordering Information

    Scaffold
    ø (mm)    		 Scaffold
    length (mm)
      13 18 22 26 30
    2.50 443103 443104 443105 - -
    3.00 443108 443109 443110 482156 443111
    3.50 443113 443114 443115 482157 443116
    4.00 443118 443119 443120 482158 443121
