PTA-Ballonkatheter/0,018“/OTW
Passeo®-18
Passeo-18
Indiziert für die Aufweitung von Stenosen in den femoralen, poplitealen und infrapoplitealen Arterien und für die Behandlung von obstruktiven Läsionen nativer oder synthetischer arteriovenöser Dialysefsteln.
1. Bosiers M, Deloose K, Callaert J, et al. 4-French-compatible endovascular material is safe and effective in the treatment of femoropopliteal occlusive disease: results of the 4-EVER trial. J Endovasc Ther. 2013; 20: 746–756. Passeo ist eine Marke oder eingetragene Marke der Unternehmensgruppe BIOTRONIK.
Technische Daten
Passeo - 18 Ballonkatheter | |
---|---|
Kathetertyp |
OTW |
Empfohlener Führungsdraht |
0,018" |
Spitze |
Kurz, konisch und farbig |
Ballonmaterial |
SCP (semikrystallines Polymer), kontrollierte Compliance (4–8 %) |

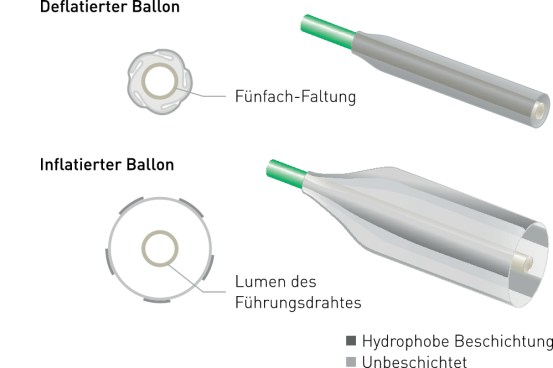

Ballonfaltung |
5-fach |
Ballonbeschichtung |
Hydrophobe Patchworkbeschichtung |
Ballonmarker |
2 eingesenkte Marker (Nullprofil) |
Größen |
ø 2,0–7,0 mm; L: 20–200 mm |
Schaft |

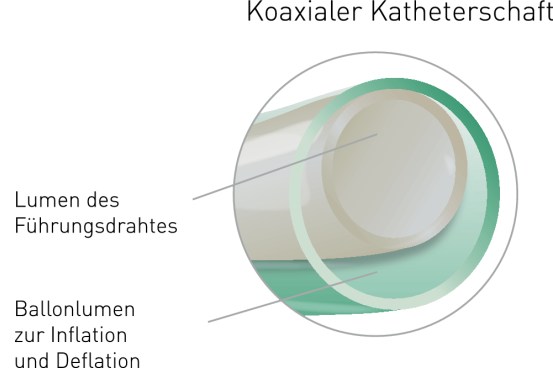

3,8 F, 3,9 F (ø 6,0/7,0 mm x 170–200 mm); koaxiales Design |
Arbeitslänge |
90, 130 and 150 cm |
Compliance - Tabelle
Ballondurchmesser x Länge (mm) | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominaldruck | atm3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||
(NP) | ø (mm) | 2,0 | 2,0 | 2,5 | 2,5 | 3,0 | 3,0 | 3,5 | 3,5 | 4,0 | 4,0 | 5,0 | 5,0 | 5,0 | 6,0 | 7,0 | |||
Berstdruck | atm3 | 15 | 14 | 15 | 14 | 15 | 14 | 15 | 14 | 15 | 13 | 15 | 12 | 13 | 12 | 12 | |||
(RBP) | ø (mm) | 2,1 | 2,1 | 2,6 | 2,6 | 3,2 | 3,2 | 3,7 | 3,7 | 4,3 | 4,2 | 5,3 | 5,2 | 5,2 | 6,2 | 7,3 |
Bestellinformationen
20 | 40 | 60 | 80 | 120 | 150 | 170 | 200 | |||||||
90 (4F) | 2,0 | 366098 | 366099 | 366100 | 366104 | 366105 | 366106 | 366114 | 376276 | |||||
90 (4F) | 2,5 | 357451 | 357458 | 366101 | 357469 | 357476 | 366107 | 357483 | 376277 | |||||
90 (4F) | 3,0 | 357452 | 357459 | 366102 | 357470 | 357477 | 366108 | 357484 | 376278 | |||||
90 (4F) | 3,5 | 357453 | 357460 | 366103 | 357471 | 357478 | 366109 | 357485 | 376279 | |||||
90 (4F) | 4,0 | 357454 | 357461 | 357465 | 357472 | 357479 | 366110 | 376272 | 376280 | |||||
90 (4F) | 5,0 | 357455 | 357462 | 357466 | 357473 | 357480 | 366111 | 376273 | 376281 | |||||
90 | 6,0 | 357456 (4F) | 357463 (4F) | 357467 (4F) | 357474 (4F) | 357481 (5F) | 366112 (5F) | 376274 (5F) | 376282 (5F) | |||||
90 | 7,0 | 357457 (4F) | 357464 (4F) | 357468 (4F) | 357475 (5F) | 357482 (5F) | 3661132 (5F) | 3762752 (5F) | 3762832 (5F) |
20 | 40 | 60 | 80 | 120 | 150 | 170 | 200 | |||||||
150 (4F) | 2,0 | 366115 | 366118 | 366119 | 366123 | 366126 | 366129 | 366137 | 376296 | |||||
130 (4F) | 2,5 | 357486 | 357491 | 366120 | 357502 | 357507 | 366130 | 357512 | 376297 | |||||
130 (4F) | 3,0 | 357487 | 357492 | 366121 | 357503 | 357508 | 366131 | 357513 | 376298 | |||||
130 (4F) | 3,5 | 357488 | 357493 | 366122 | 357504 | 357509 | 366132 | 357514 | 376299 | |||||
130 (4F) | 4,0 | 357489 | 357494 | 357498 | 357505 | 357510 | 366133 | 376292 | 376300 | |||||
130 (4F) | 5,0 | 357490 | 35495 | 357499 | 357506 | 357511 | 366134 | 376293 | 376301 | |||||
130 | 6,0 | 366116 (4F) | 357496 (4F) | 357500 (4F) | 366124 (4F) | 366127 (5F) | 366135 (5F) | 376294 (5F) | 376302 (5F) | |||||
130 | 7,0 | 366117 (4F) | 357497 (4F) | 357501 (4F) | 366125 (5F) | 366128 (5F) | 3661362 (5F) | 3762952 (5F) | 3763032 (5F) |
