Astron Pulsar

Vascular Intervention // Peripheral
Self-Expanding Stent System/0.018”/OTW

Astron® Pulsar ®


     155 μm thin struts

     4F low profile

     Simple stent deployment

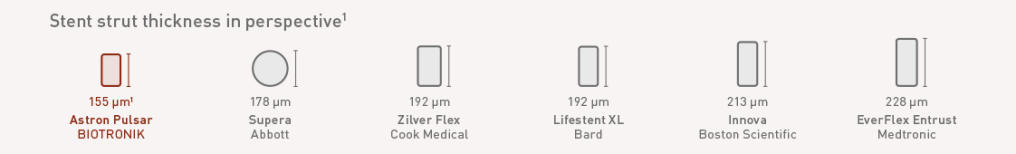

155 μm thin struts - thinner than the leading brands1

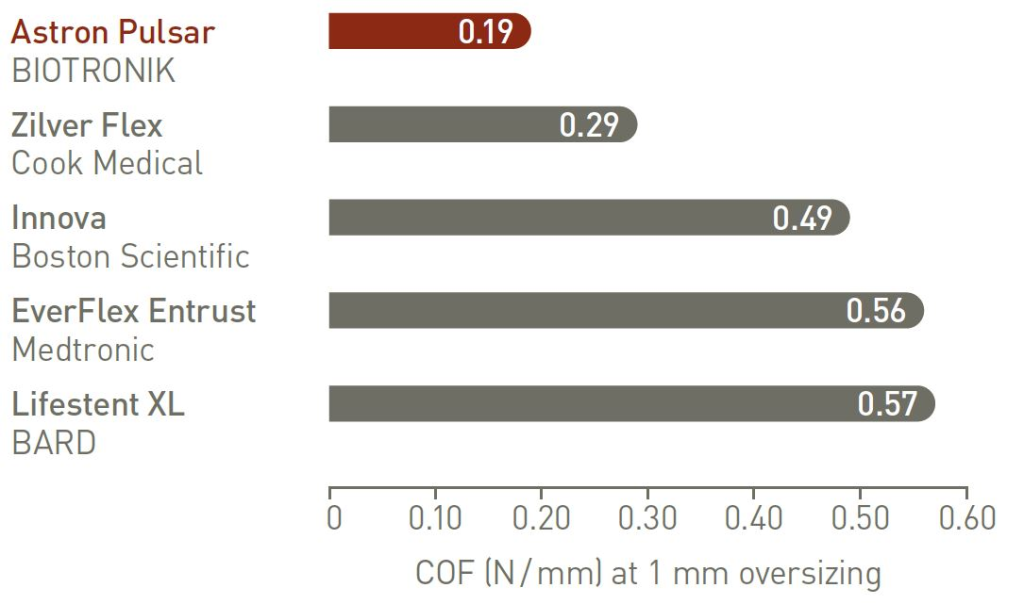

Thinner struts for low Chronic Outward Force (COF)2
















Thinner struts and lower COF make a difference:*







  • Lower risk of restenosis3
  • Reduced vessel injury and inflammation4
  • Faster endothelialization5

*As demonstrated in pre-clinical studies



1mm stent oversizing at 90 days 6




4F Low Profile - Improved acute outcomes vs. 6F7






Potential for safer, faster and simpler procedures than 6F





  • Clinically proven lower access site complication rates7
  • Shorter compression time8

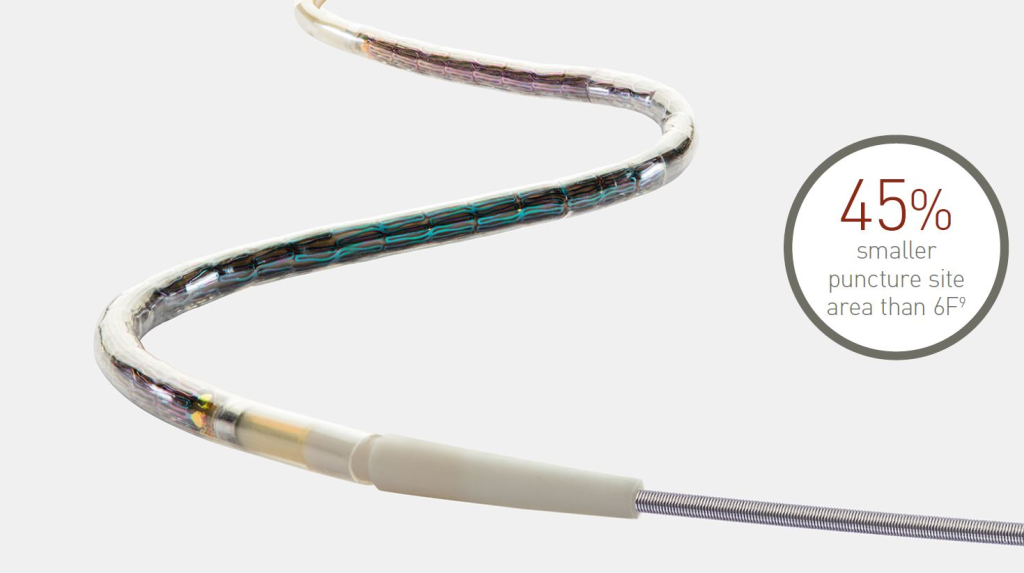

  • 45% smaller puncture site area than 6F9
  • No need for a closure device







Simple stent deployment7











Astron® Pulsar ®

Indicated for use in patients with atherosclerotic disease of the femoral and infrapopliteal arteries and for the treatment of insufficient results after percutaneous transluminal angioplasty (PTA).*

Technical Data

Astron Pulsar Stent
Catheter type
OTW
Recommended guide wire
0.018"
Stent material
Nitinol
Strut thickness
155 μm
Stent coating
proBIO (Amorphous Silicon Carbide)
Stent markers
6 gold markers on each end
Sizes
ø 4 - 7 mm; L: 20 - 80 mm
Proximal shaft
3.6 F, hydrophobic coating
Usable length
70 cm (ø 5.0 - 7.0 mm)
72 cm (ø 4.0 mm, L: 60 - 80 mm)
75 cm (ø 4.0 mm, L: 20 - 40 mm)
120 cm (ø 5.0 - 7.0 mm)
130 cm (ø 4.0 mm, L: 60 - 80 mm)
135 cm (ø 4.0 mm, L: 20 - 40 mm)

Ordering Information

4.0 (4F) 358939 358940 358941 359347 359680
5.0 (4F) 349267 349268 349269 349270 358942
6.0 (4F) 349275 349276 349277 349278 358943
7.0 (4F) - 349283 349284 349285 349286
4.0 (4F) 358944 358945 358946 359346 359681
5.0 (4F) 349271 349272 349273 349274 358947
6.0 (4F) 349279 349280 349281 349282 358948
7.0 (4F) - 349287 349288 349289 349290

Contact

contact
Country/Region
5 + 3 =
Solve this simple math problem and enter the result. E.g. for 1+3, enter 4.

1 6.0 mm diameters; BIOTRONIK data on file;

2 6.0 mm diameters. Supera stent not possible to test due to its design and applied test method. BIOTRONIK data on file;

3 As demonstrated in pre-clinical studies: Zhao HQ, Nikanorov A, Virmani R, Jones R, Schwartz LB. Late stent expansion and neointimal proliferation of oversized nitinol stents in peripheral arteries. Cardiovasc. Intervent. Radiol. 2009 Jul; 32(4); 720-6;

4 As demonstrated in pre-clinical studies: Zhao HQ, Nikanorov A, Virmani R, Jones R, Schwartz LB. Late stent expansion and neointimal proliferation of oversized nitinol stents in peripheral arteries. Cardiovasc. Intervent. Radiol. 2009 Jul; 32(4); 720-6;

5 As demonstrated in pre-clinical studies: Konstantinos C. Role of endothelial shear stress in stent restenosis and thrombosis. JACC 2012.; Koppara et al. Circ Cardiovasc Interv 2015; 8: e002427.; EuroIntervention. BIOTRONIK data on file. 2010 Nov;6(5):630-7; Soucy N, Feygin J et al.;

6 Funovic M. Presented at LINC 2017;

7 Bosiers M, et al. 4-French-compatible endovascular material is safe & effective in the treatment of femoropopliteal occlusive disease: Results of the 4EVER Trial. J ENDOVASC THER. 2013; 20: 746-756;

8 Bosiers M, et al. 4-French-compatible endovascular material is safe & effective in the treatment of femoropopliteal occlusive disease: Results of the 4EVER Trial. J ENDOVASC THER. 2013; 20: 746-756;

9 BIOTRONIK data on file.

Leading competitors have been selected based on the PV Stent Revenue Market Shares EU, 2017 and PV Revenue Market Shares APAC 2015; (Source: Milennium Research Group Inc.). Latest SFA self expanding stents for each manufacturer; Supera is a registered trademark of the Abbott Group of Companies; Lifestent is a registered trademark of C.R. Bard; Zilver is a registered trademark of Cook Medical; EverFlex and Entrust are registered trademarks of the Medtronic Group of Companies; Innova is a registered trademark of Boston Scientific.

*Indication as per IFU.
