    Qubic RF
  • Image
    Qubic RF
  • Image
  • Image

Qubic RF

RF Generator

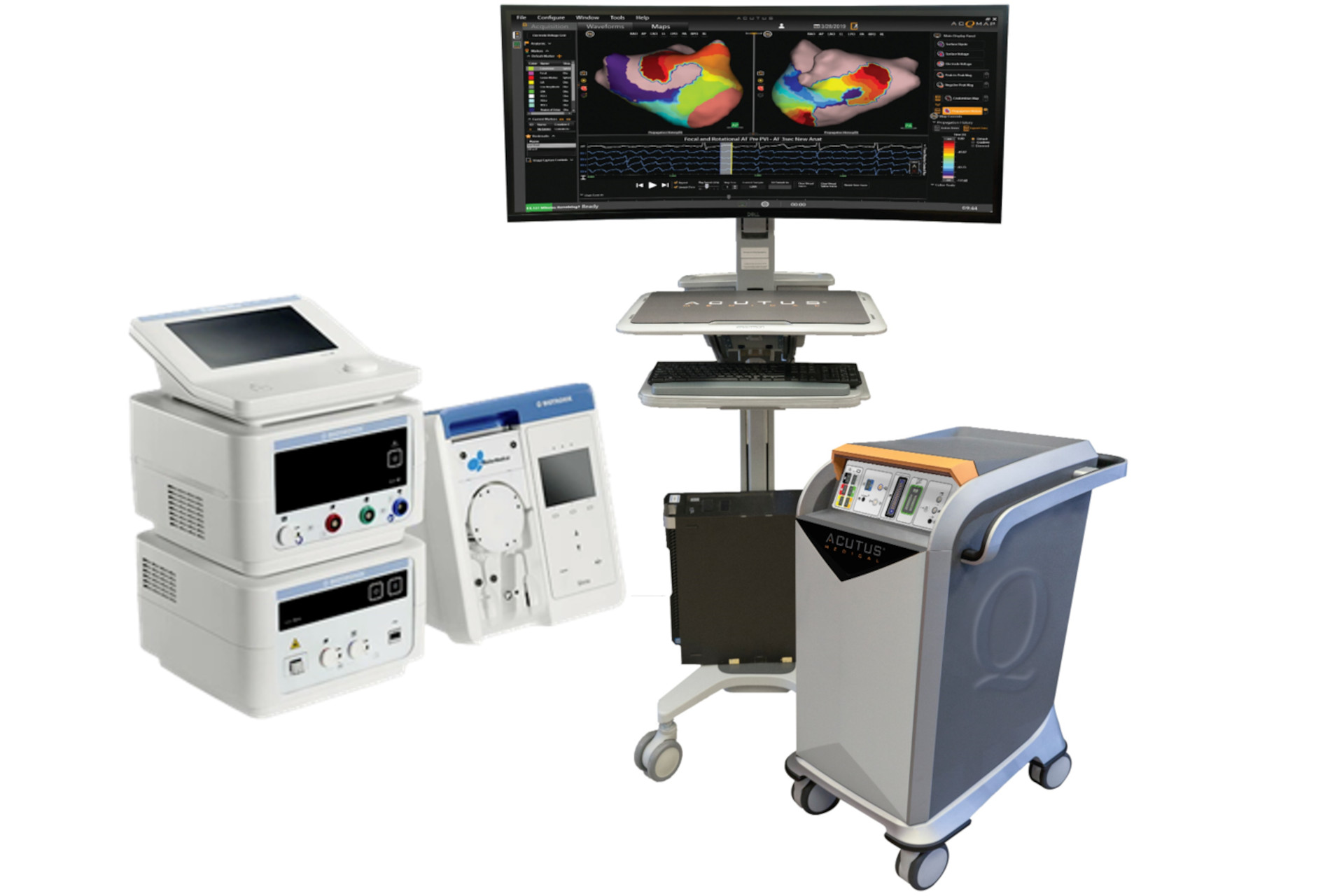

The Qubic RF is a modular radiofrequency generator that allows any current electrophysiological treatments for cardiac radiofrequency ablation. It has one of the smallest footprints in the market, is easy to set up and pairs perfectly with the Qiona irrigation pump for ease of use during procedures.


Ablation Therapy Qubic RF RF Generator

Product Highlights

Icon User Interface

Simple User Interface

Qubic RF's complete functionality is displayed in 4 menu screens

Icon 5-Click-Go


Once the catheter is connected, ablation can be started in five click

Icon Adaptive High Flow

Adaptive High Flow

3 High Flow levels following adaptable power thresholds

Key Features

Qubic RF

Qubic RF back

Technical Data

Physical Properties of the Control Unit
Dimensions (W × H × D) 220 × 78 × 218 mm
Physical Properties of RF Unit
Dimensions (W x H x D) 230 × 149 × 230 mm
Radiofrequency Generation
Max. current 1.65 A
Max. voltage 150 V
Max. power output 100 W
Impedance measurement range 25 – 350 Ω (± 10%)


Ordering Information

Model Description Order Number
Qiona – Irrigation Pump   406 935
Optional Accessories
Qiona Tube Set incl. Extension

Weight: 90 g

Total length: 4.5 m

Length between Qiona® and catheter adapter: 3 m (1.5 m Tube + 1.5 m Extension)

365 775
Qiona Foot Switch Weight: 380 g

Cable length: 5 m
406 937
Qiona AutoFlow Sensor Weight: 200 g

Cable length: 4 m
406 936
Qiona Pole Adapter Set Weight: 25 g 377 184
